Our Plans

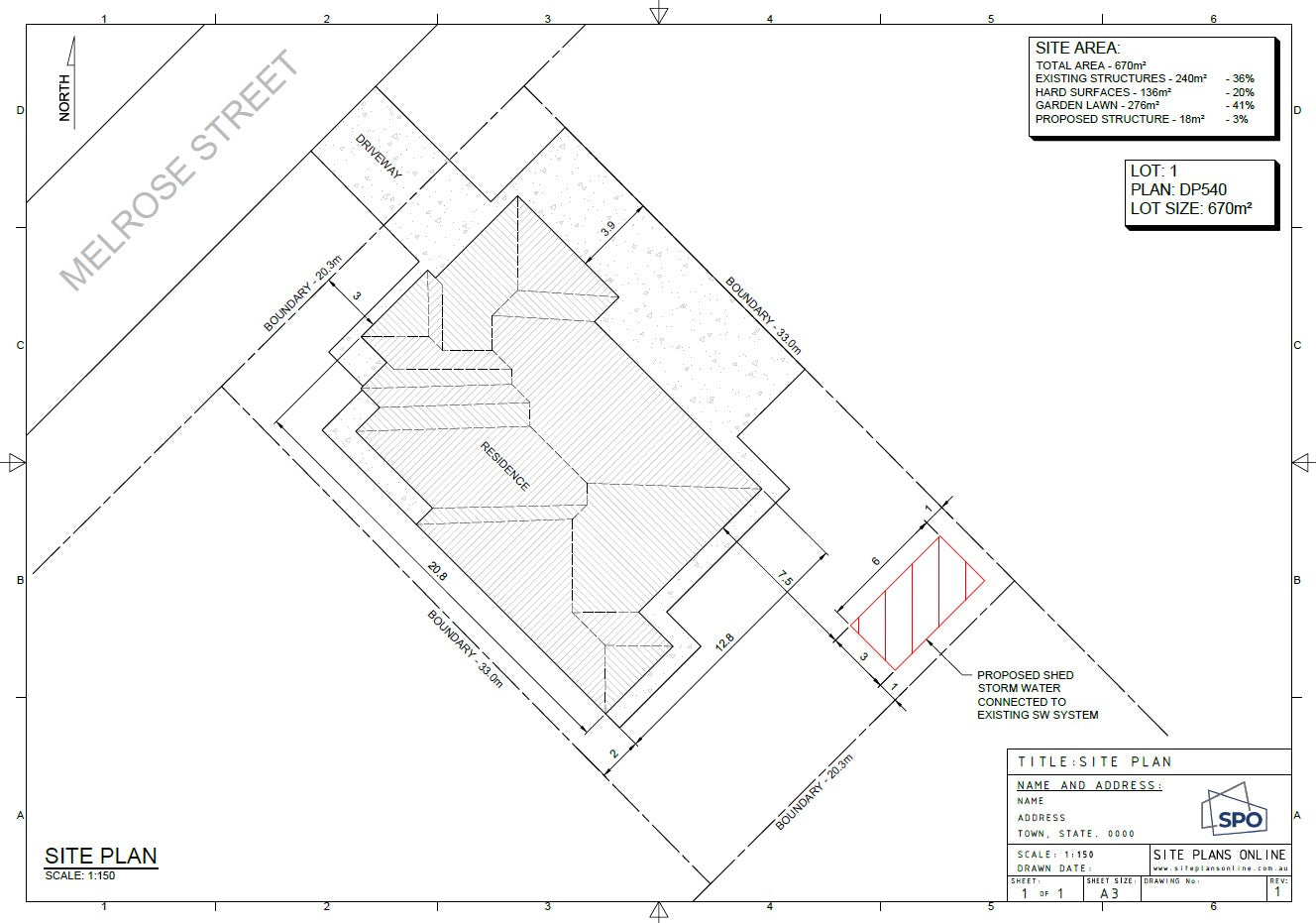

Basic Site Plan

The fundamentals required for most council planning applications. Structures, boundaries, hard surfaces, and dimensions, drawn to scale and council-ready within 24 hours.

From

$155.00
$155.00

+GST

Additional $55 for properties over 1,000m²

Configure Your Site Plan

Step 1 of 7

Do you require a proposed addition included on the site plan

0 Proposed Structures (+$0)
$155.00
1 Proposed Structure (+$25)
$180.00
2 Proposed Structure (+$50)
$205.00
3 Proposed Structure (+$75)
$230.00
Step 2 of 7

Is your property over 1,000m²

Property over 1000m²
$55.00
No
$0
Step 3 of 7

Do you require an Area Schedule  (including percentages of land use)?

Normally only required for smaller properties.
Area Schedule (including percentages of land use) (optional)
$25.00
No
$0
Step 4 of 7

Do you require a Cad File?

Only for people with drafting software
CAD File
$25.00
No
$0
Step 5 of 7

Please enter the address of the property you require the site plan for

Step 6 of 7

Additional notes or instructions?

Step 7 of 7

Do you require a formal invoice?

Order Summary
Total $0.00
Quantity:
Ask a question first

Delivered within 24 hours

Revisions included

No site visit required

Basic Site Plan
24-Hour Turnaround
Servicing All of Australia
Family Business
Council-Approved Format
5.0 Google Rating
What You Get

Everything included in the Basic Site Plan

A complete, council-ready drawing that shows all the information most planning authorities need for a standard residential application.
Property Boundary

Your full land boundary drawn to scale with all boundary lengths dimensioned. Shown as a dashed line to clearly distinguish it from structures.

All Major Structures

Outline of every structure on your property, dwelling, garage, shed, carport, pergola, or any other built form, accurately positioned and labelled.

Hard Surfaces

All paved, concreted, or sealed surfaces, driveways, paths, patios, and any other hard landscaping, shown and labelled.

Dimensions & Scale

Key dimensions shown throughout, boundary lengths, structure widths and setbacks from boundaries. Drawn at 1:200 or 1:500 as appropriate.

North Point & Title Block

A north arrow for orientation, plus a professional title block showing the property address, scale, date, job number, and drafter details.

Proposed Works (Optional)

If you're applying for approval to build something new, we can show proposed structures on the plan, clearly marked as proposed, at no extra charge.

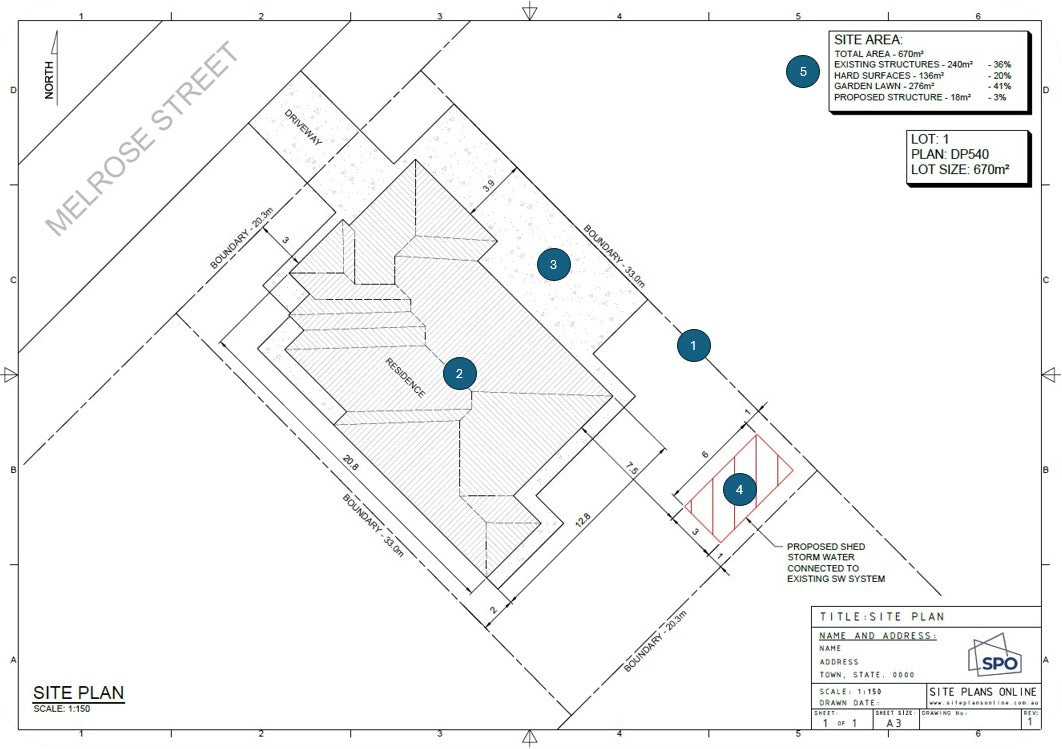

Reading the Plan

What each element on the plan represents.
1
Property Boundary

The dashed line shows the legal boundary of your land. All boundary lengths are dimensioned. This is what separates your property from your neighbours and the street.

2
Existing Strctures

The footprint of your main residence, drawn to scale from aerial surveys, with the roof outline shown. Labelled and positioned accurately within the boundary.

3
Hard Surfaces

Driveways, paths, patios, and any other paved or sealed areas. These are important for council to understand site coverage and stormwater impact.

4
Proposed Structure - Optional

Details of any planned buildings, extensions, or additions to the site. This helps council understand the intended use of the land, building footprint, and how the proposal fits within planning controls.

5
Area Schedule – optional

A summary of site areas including building footprint, hard surfaces, landscaping, and open space. This provides council with a clear breakdown of site coverage and assists in assessing compliance with planning requirements.

What You Get

Everything included in the Basic Site Plan

A complete, council-ready drawing that shows all the information most planning authorities need for a standard residential application.
Planning permit applications

Applying for a planning permit for an proposed sheds, carport, pool or fence? The Basic plan covers what most councils require as part of the standard application package.

Shed & outbuilding approvals

Building a new shed, garage, or carport? Most councils require a site plan showing the proposed structure's position on the property. We can include it on the plan.

Building permit applications

A site plan is often required alongside a building permit application. The Basic plan provides the site context your certifier or council building department needs.

Pool & spa approvals

Installing a pool or spa requires council approval in most states. A site plan showing the pool's position, setbacks, and surrounding structures is a standard requirement. We typically include pool barrier location when drawing pools and spas.

Not sure if the Basic plan is right for your application?

Give us a call or send us a message. We'll look at what your council has asked for and tell you exactly which plan you need, at no charge, before you order.

Call 0413 167 952 Enquire Now
The Process

How your plan gets made

Four steps from order to council-ready PDF. No site visit, no complicated process.
01

Place Your Order

Select the plan type that suits your project and complete your order online. We'll confirm receipt immediately and get to work.
02

Send Us Your Details

We'll ask for your property address and any additional measurements you have, a sketch, photos, or existing plans all help. No formal survey is needed.
03

We Draw Your Plan

Using high-resolution aerial surveys and your details, our drafters produce an accurate, scaled site plan to Australian standards, typically within 24 hours.
04

Receive & Submit

Your finished plan is delivered by email in PDF format, ready to attach to your council application. Revisions are included if needed.
Compare Plans

Need more detail? Here's how the plans compare.
You Are Here
Most Popular for Permits

Basic

The fundamentals for most council applications.

From

$155

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
For Greater Detail

Detailed

Everything in Basic, plus full landscaping detail.

From

$195

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
For Complex Applications

Technical

Full detail including underground services data.

From

$255

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
View detailed breakdown
What Our Customers Say

Trusted by homeowners across Australia
Read All Reviews
Ready to Get Started?

Basic Site Plan, from $155 + GST

Order before 3pm and receive your plan within 24 hours. No site visit required.

Order Your Plan Call 0413 167 952
