Our Plans

Detailed Site Plan

Everything in the Basic plan, plus a complete picture of your landscaping, garden borders, lawn areas, trees, and shrubs. The plan most councils prefer to see for a full picture of existing site conditions.

From

$195.00
$195.00

+GST

Additional $55 for properties over 1,000m²

Configure Your Site Plan

Step 1 of 7

Do you require a proposed addition included on the site plan

0 Proposed Structures (+$0)
$195.00
1 Proposed Structure (+$25)
$220.00
2 Proposed Structure (+$50)
$245.00
3 Proposed Structure (+$75)
$270.00
Step 2 of 7

Is your property over 1,000m²

Property over 1000m²
$55.00
No
$0
Step 3 of 7

Do you require an Area Schedule  (including percentages of land use)?

Normally only required for smaller properties.
Area Schedule (including percentages of land use) (optional)
$25.00
No
$0
Step 4 of 7

Do you require a Cad File?

Only for people with drafting software
CAD File
$25.00
No
$0
Step 5 of 7

Please enter the address of the property you require the site plan for

Step 6 of 7

Additional notes or instructions?

Step 7 of 7

Do you require a formal invoice?

Order Summary
Total $0.00
Quantity:
Ask a question first

Delivered within 24 hours

Revisions included

No site visit required

Detailed Site Plan
24-Hour Turnaround
Servicing All of Australia
Family Business
Council-Approved Format
5.0 Google Rating
What You Get

Everything included in the Detailed Site Plan

A complete, council-ready drawing that shows all the information most planning authorities need for a standard residential application.
Property Boundary

Your full land boundary drawn to scale with all boundary lengths dimensioned. Shown as a dashed line to clearly distinguish it from structures.

All Major Structures

Outline of every structure on your property, dwelling, garage, shed, carport, pergola, or any other built form, accurately positioned and labelled.

Hard Surfaces

All paved, concreted, or sealed surfaces, driveways, paths, patios, and any other hard landscaping, shown and labelled.

Added in Detailed
Garden Borders

All garden beds and planted borders shown with a distinct hatching pattern, giving council a complete picture of how your site is landscaped.

Added in Detailed
Lawn Areas

All turfed and grassed areas mapped and labelled, distinguishing soft landscaping from garden beds and hard surfaces.

Added in Detailed
Trees & Shrubs

Individual trees shown to scale with canopy spread, plus shrub groupings, particularly important for council applications involving vegetation removal or proximity to trees.

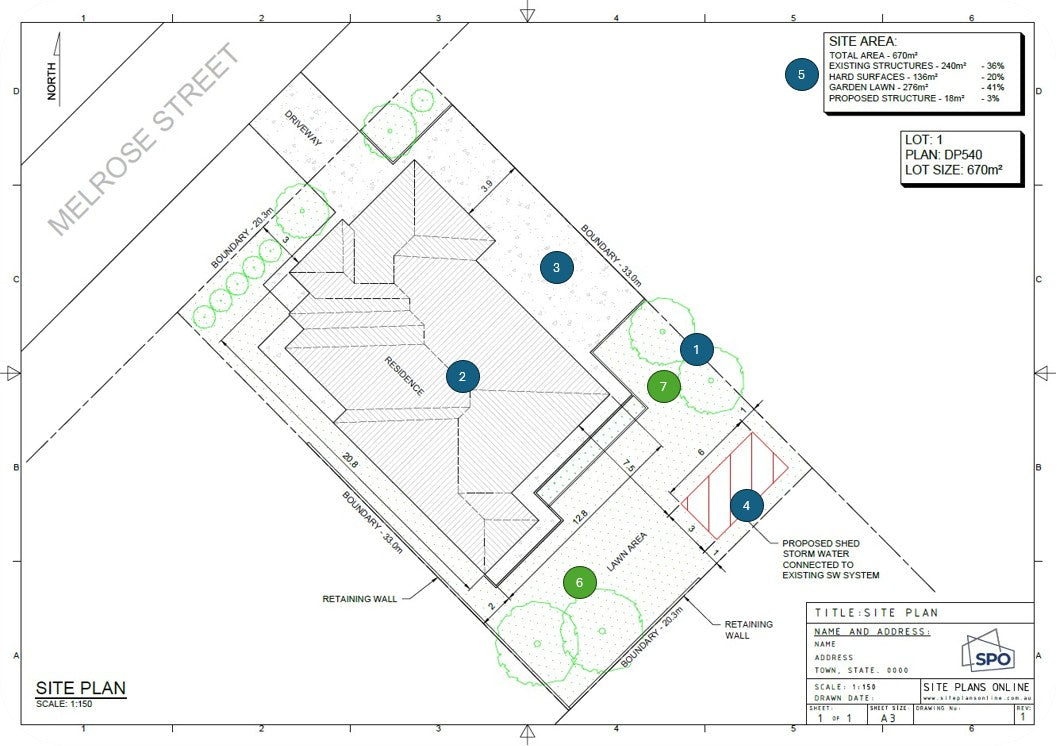

Reading the Plan

What each element on the plan represents.

Navy callout numbers are elements shared with the Basic plan. Green numbers are new additions in this plan.
1
Property Boundary

The dashed line shows the legal boundary of your land. All boundary lengths are dimensioned.

2
Existing Strctures

The footprint of your main residence, drawn to scale from aerial surveys, with the roof outline shown.

3
Hard Surfaces

Driveways, paths, patios, and any other paved or sealed areas. These are important for council to understand site coverage and stormwater impact.

4
Proposed Structure - Optional

Details of any planned buildings or additions. Helps council understand the proposed use and footprint.

5
Area Schedule – optional

Summary of site areas like buildings, hard surfaces, and open space. Helps assess site coverage and compliance.

6
Lawn / landscaped area
New

Grass, gardens, and other soft landscaping. Helps council assess open space and site permeability.

7
Trees and Garden
New

Existing and proposed trees or planting. Important for understanding vegetation impact and retention.

What You Get

When councils ask for a complete picture of your site.

If your council has asked for landscaping detail, or your application involves vegetation, a pool, or a larger extension, the Detailed plan is the right choice.
Applications involving vegetation

If your project involves removing trees, building near existing vegetation, or your council wants to assess the landscaping character of your property, the Detailed plan provides the full picture.

Pool & outdoor living approvals

Pool, spa, and outdoor entertainment area applications often require council to see the full landscaping context, garden, lawn, and tree locations, to assess setbacks and site coverage.

Extensions & additions

Larger extensions and additions, particularly those affecting the garden or outdoor areas, benefit from the Detailed plan, which gives council a complete view of how the site will be affected.

When you want the most complete plan

Many customers choose the Detailed plan simply because it provides the most thorough representation of their property, reducing the chance of council requesting additional information.

Not sure if the Detailed plan is right for your application?

Give us a call or send us a message. We'll look at what your council has asked for and tell you exactly which plan you need, at no charge, before you order.

Call 0413 167 952 Enquire Now
The Process

How your plan gets made

Four steps from order to council-ready PDF. No site visit, no complicated process.
01

Place Your Order

Select the plan type that suits your project and complete your order online. We'll confirm receipt immediately and get to work.
02

Send Us Your Details

We'll ask for your property address and any additional measurements you have, a sketch, photos, or existing plans all help. No formal survey is needed.
03

We Draw Your Plan

Using high-resolution aerial surveys and your details, our drafters produce an accurate, scaled site plan to Australian standards, typically within 24 hours.
04

Receive & Submit

Your finished plan is delivered by email in PDF format, ready to attach to your council application. Revisions are included if needed.
Compare Plans

Need more detail? Here's how the plans compare.
Most Popular for Permits

Basic

The fundamentals for most council applications.

From

$155

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
You Are Here
For Greater Detail

Detailed

Everything in Basic, plus full landscaping detail.

From

$195

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
For Complex Applications

Technical

Full detail including underground services data.

From

$255

+GST

Additional $55 for sites over 1,000m²

Property boundary
All structures
Hard surfaces
Dimensions & scale
Garden & lawn
Trees & shrubs
Underground services
Neighbour outlines
Order Now
View detailed breakdown
What Our Customers Say

Trusted by homeowners across Australia
Read All Reviews
Ready to Get Started?

Detailed Site Plan, from $195 + GST

Order before 3pm and receive your plan within 24 hours. No site visit required.

Order Your Plan Call 0413 167 952
